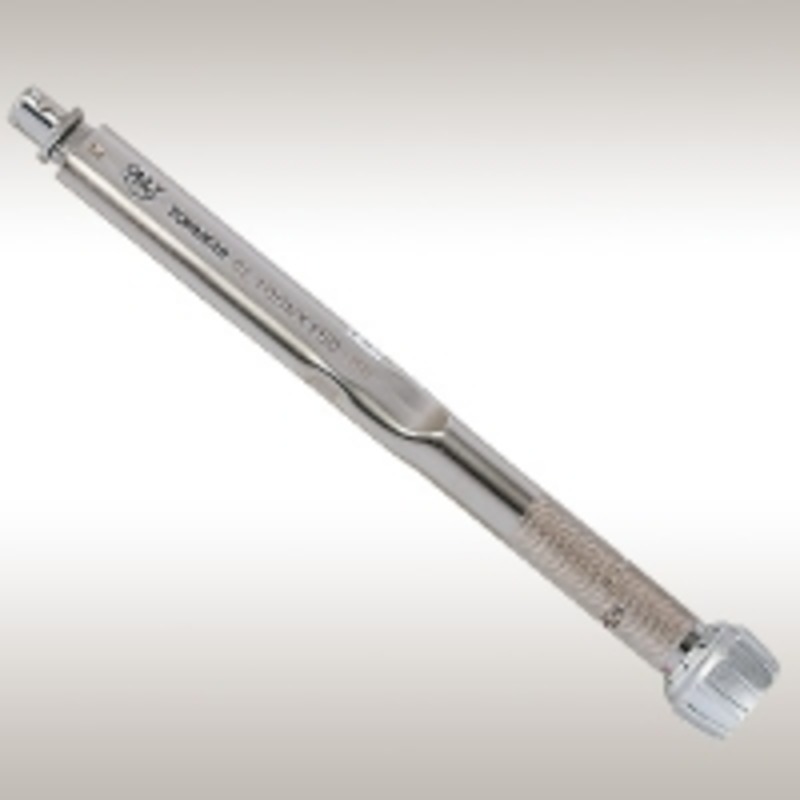

TOHNICHI CL型扭力扳手
- CL型滾花金屬手柄扭力扳手
- QL-MH型相同的功能，扭力扳手可換
- 通過交換頭，扭力手頭各種型式的開口扳手頭，梅花扳手頭，棘輪扳手頭，六角頭，有很多的應用
- 適用於國際使用，包括歐盟地區
- 符合ISO 6789 II型A類的校準程序
|
型式 S.I. Model |
扭力範圍 (N.m) |
型式 Metric Model |
扭力範圍 (kgf.cm/kgf.m) |
適用交換頭規格 |
全長 (mm) |
重量 (kg) |
||
|
最小~最大 |
1刻劃 |
最小~最大 |
1刻劃 |
|||||
|
|
|
|
|
kgf.cm |
kgf.cm |
|
|
|
|
CL2NX8D-MH |
0.4-2 |
0.02 |
20CL-MH |
4-20 |
0.2 |
8D |
140 |
0.13 |
|
CL5NX8D-MH |
1-5 |
0.05 |
50CL-MH |
10-50 |
0.5 |
|||
|
CL10NX8D-MH |
2-10 |
0.1 |
100CL-MH |
20-100 |
1 |
175 |
0.16 |
|
|
CL15NX8D-MH |
3-15 |
150CL-MH |
30-150 |
|||||
|
CL25NX10D-MH |
5-25 |
0.25 |
225CL-MH |
50-250 |
2.5 |
10D |
200 |
0.22 |
|
CL50NX12D-MH |
10-50 |
0.5 |
450CL-MH |
100-500 |
5 |
12D |
230 |
0.37 |
|
CL50NX15D-MH |
500CL-MH |
15D |
235 |
|||||
|
CL100NX15D-MH |
20-100 |
1 |
900CL-MH |
200-1000 |
10 |
310 |
0.52 |
|
|
CL140NX15D-MH |
30-140 |
1400CL-MH |
300-1400 |
370 |
0.67 |
|||
|
CL200NX19D-MH |
40-200 |
2 |
1800CL-MH |
400-2000 |
20 |
19D |
455 |
1.2 |
|
|
|
|
|
kgf.m |
kgf.m |
|
|
|
|
CL280NX22D-MH |
40-280 |
2 |
2800CL-MH |
4-28 |
0.2 |
22D |
655 |
1.6 |

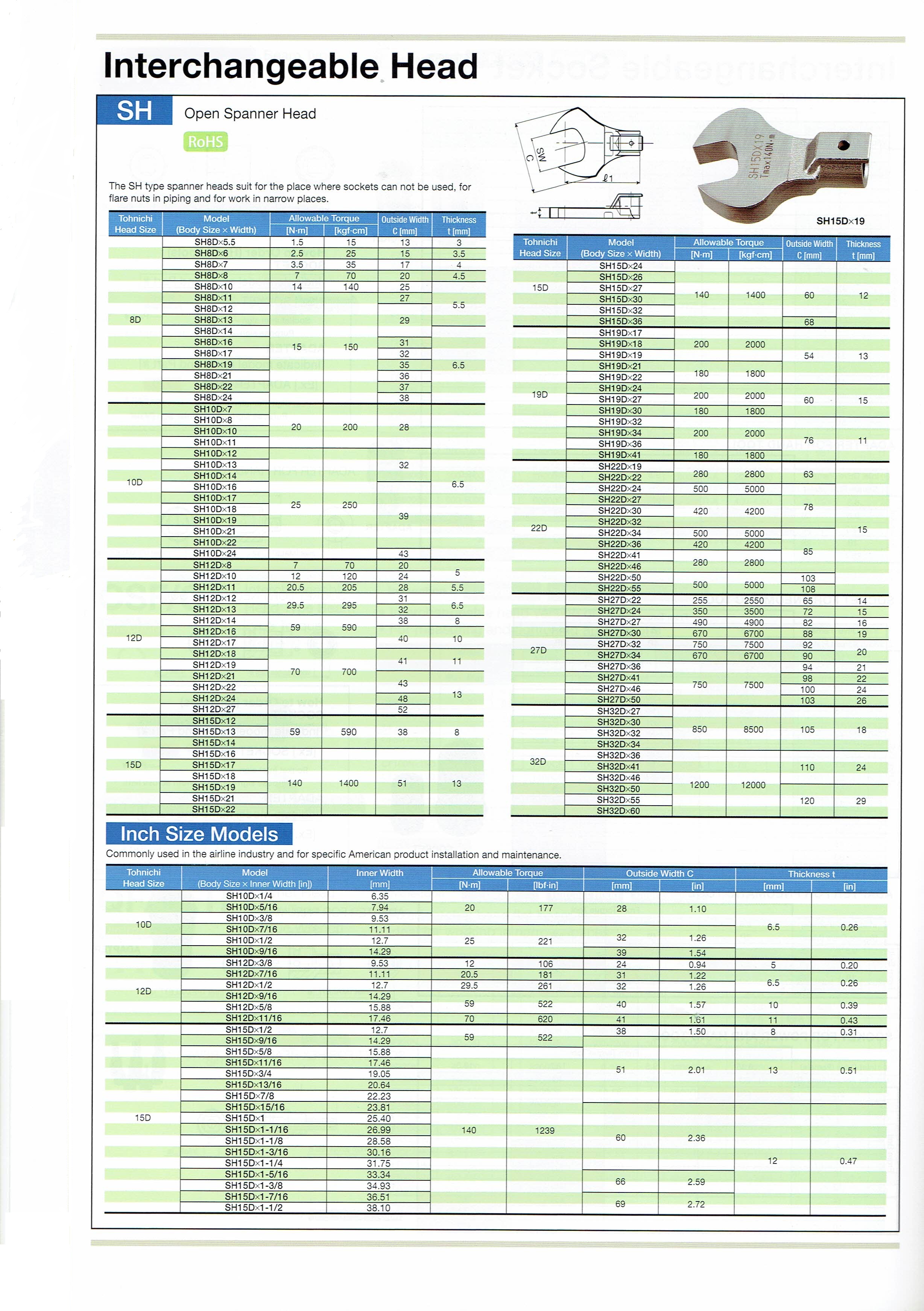

CL交換頭尺寸規格
|
交換頭尺寸 |
型式 (本體x開口W) |
允許扭力 |
外幅寬度 (mm) |
厚度 (mm) |
|
|
(N.m) |
(kgf.cm) |
||||
|
8D |
SH8DX5.5 |
1.5 |
15 |
13 |
3 |
|
SH8DX6 |
2.5 |
25 |
15 |
3.5 |
|
|
SH8DX7 |
3.5 |
35 |
17 |
4 |
|
|
SH8DX8 |
7 |
70 |
20 |
4.5 |
|
|
SH8DX10 |
14 |
140 |
25 |
5.5 |
|
|
SH8DX11 |
15 |
150 |
27 |
||
|
SH8DX12 |
29 |
||||
|
SH8DX13 |
|||||
|
SH8DX14 |
6.5 |
||||
|
SH8DX16 |
31 |
||||
|
SH8DX17 |
32 |
||||
|
SH8DX19 |
35 |
||||
|
SH8DX21 |
36 |
||||
|
SH8DX22 |
37 |
||||
|
SH8DX24 |
38 |
||||
|
10D |
SH10DX7 |
20 |
2000 |
28 |
6.5 |
|
SH10DX8 |
|||||
|
SH10DX10 |
|||||
|
SH10DX11 |
|||||
|
SH10DX12 |
25 |
250 |
32 |
||
|
SH10DX13 |
|||||
|
SH10DX14 |
|||||
|
SH10DX16 |
39 |
||||
|
SH10DX17 |
|||||
|
SH10DX18 |
|||||
|
SH10DX19 |
|||||
|
SH10DX21 |
|||||
|
SH10DX22 |
|||||
|
SH10DX24 |
43 |
||||
|
12D |
SH12DX8 |
7 |
70 |
20 |
5 |
|
SH12DX10 |
12 |
120 |
24 |
||
|
SH12DX11 |
20.5 |
205 |
28 |
5.5 |
|
|
SH12DX12 |
29.5 |
295 |
31 |
6.5 |
|
|
SH12DX13 |
32 |
||||
|
SH12DX14 |
38 |
8 |
|||
|
SH12DX16 |
59 |
590 |
40 |
10 |
|
|
SH12DX17 |
|||||
|
SH12DX18 |
70 |
700 |
41 |
11 |
|
|
SH12DX19 |
|||||
|
SH12DX21 |
43 |
13 |
|||
|
SH12DX22 |
|||||
|
SH12DX24 |
48 |
||||
|
SH12DX27 |
52 |
||||
